Powerful 802.3bt PoE++ Managed Switch with Extremely Large Power Capability

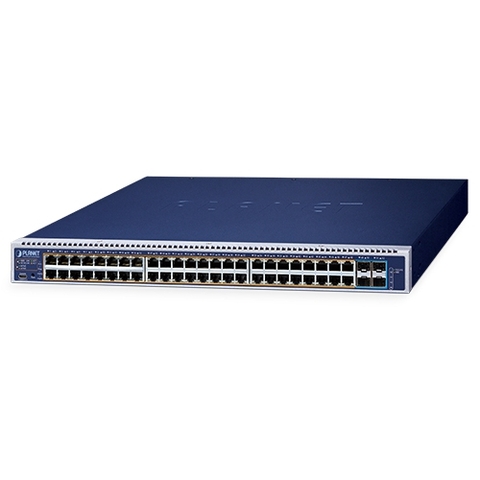

PLANET GS-6322-48UP4X Fully-managed 802.3bt PoE++ Switch with dual modular power supply slots expandability promotes power management efficiency and flexibility in large-scale networks, such as enterprises, hotels, shopping malls, government buildings, and other public areas. It supports rich PoE operation modes including 48 95-watt 802.3bt type-4 PoE++ ports, mode and 4-pair force mode to solve the incompatibility of non-standard 4-pair PoE PDs in the field. With a total power budget of up to 3200 watts for different kinds of heavy PoE applications, the GS-6322-48UP4X provides a quick, safe and cost-effective 802.3bt PoE network solution for small businesses and enterprises.

Extractive Power Supply Design to Increase Flexibility

The GS-6322-48UP4X is designed with two extractive power module slots to support Redundant Power Supply (RPS) mode or Extended Power Supply (EPS) mode via software setting to handle the demands of power redundancy or additional power for PoE++ ports as needed.

• RPS (1+1) mode: Where critical services are supported by PoE application, the secondary PSU is needed to provide backup power in the event of a power outage. When two PSUs are installed, the power budget is the same as that of one PSU.
• EPS (2+0) mode: Where more PoE budget is required to support complete application, the secondary PSU can provide additional PoE power. The two PSUs combined are able to provide a maximum of total PoE power.

The GS-6322-48UP4X can work with three optional 920W/1200W/2000W AC power supplies. Users can flexibly use single or dual power supply according to their application. Its flexible redundant and extended power system is specifically designed for high-tech facilities requiring the highest power integrity

Leveres uten powersupply.
